Product Overview

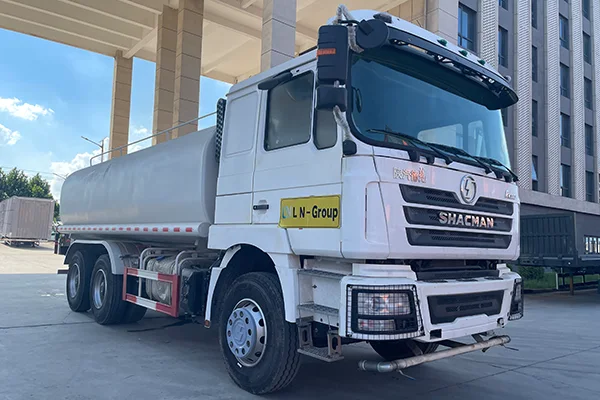

The Shacman Delong F3000 SX1255 6×4 Water Sprinkler Truck is a professionally refurbished heavy-duty vehicle designed for road cleaning, construction-site dust suppression, mining-road watering, landscaping and industrial water transportation.
The vehicle features a three-axle 6×4 drivetrain with dual rear drive axles and ten heavy-duty tires. This configuration provides strong traction, reliable load-bearing performance and good adaptability to uneven construction, mining and unpaved roads.
Each truck undergoes complete dismantling and inspection. Worn components are replaced, the entire water-pipeline system is reinstalled, and the vehicle is fully commissioned, road-tested and inspected before delivery. Both left-hand-drive and right-hand-drive configurations are available for different international markets.
I. Basic Vehicle Specifications
| Item | Specification |
|---|---|
| Vehicle Model | SHACMAN Delong 6×4 Sprinkler Truck (Water Tanker) |
| Common Models | SX5250 Series (F3000 / X3000 chassis, customizable) |
| Drive Type | 6×4 (rear dual axles, 10 tires) |
| Tank Capacity | 15–20 m³ (customizable) |
| Gross Vehicle Weight (GVW) | 25,000 kg |
| Curb Weight | Approx. 11,500–12,500 kg |
| Rated Payload | Approx. 12,500–13,500 kg |
| Wheelbase | 4,375 + 1,400 mm (other options available) |
| Max Speed | 80–90 km/h |
| Electrical System | 24V, 165Ah maintenance-free battery, English-labeled instrument cluster |
| Color | Engineering Yellow / White (customizable) |
II. Powertrain
| Item | Specification |
|---|---|
| Engine | Weichai WP10.375E32 / WD12.375, inline 6-cylinder diesel, Euro II emission (mechanical injection pump) |
| Horsepower / Power | 375 HP / 276 kW |
| Displacement | 9.726–11.596 L |
| Max Torque | 1,750–1,800 N·m |
| Transmission | FAST 12-speed manual (with PTO) |
| Clutch | Φ430mm dry-type diaphragm spring clutch |
| Fuel Tank | 300L aluminum alloy fuel tank |
| Air Filter | Oil-bath heavy-duty air filter (suitable for dusty environments in Africa) |
| Braking System | Exhaust brake + drum brake; ABS optional |
III. Chassis, Axles & Suspension
| Item | Specification |
|---|---|
| Front Axle | Hande MAN-tech 7.5-ton steering front axle |
| Rear Axle | Hande MAN 16-ton double reduction rear axles (tandem), ratio 5.282 / 4.8 |
| Chassis Frame | 850 × 300 mm double-layer reinforced frame |
| Suspension | Front & rear multi-leaf steel springs, reinforced U-bolts |
| Steering | ZF-tech hydraulic power steering |
| Tires | 12R22.5 |
IV. Cab
| Item | Specification |
|---|---|
| Basic Configuration | Delong extended flat-top cab, four-point hydraulic suspension |
| Comfort Features | Electric automatic climate control A/C, hydraulic driver’s seat, power windows, manual cab tilt |
| Adapted Configuration | English instrument cluster, SHACMAN English logo, metal front bumper with crash protection |
V. Sprinkler System (Standard)
| Item | Specification |
|---|---|
| Tank Material | Q235 high-quality carbon steel, anti-corrosion interior coating, reinforced tank heads |
| Water Pump | Vehicle-mounted self-priming sprinkler pump (80/90 pump), suction depth 8 m |

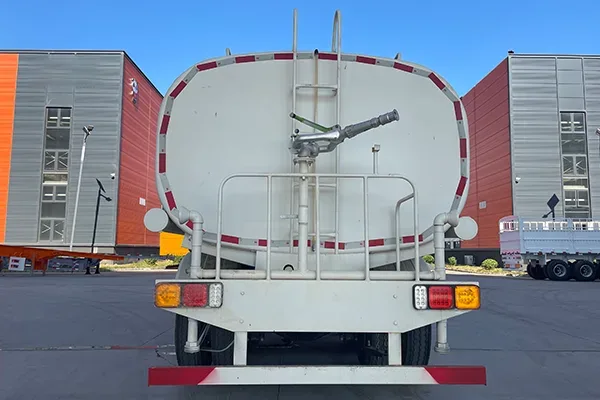

| Water Cannon | Front-mounted high-pressure water cannon, range 30–40 m, 360° rotatable |
| Sprinkler Nozzles | Rear fan-shaped nozzles + side spray, spraying width 8–14 m (adjustable) |
| Power Take-off (PTO) | Transmission PTO drives the water pump |
| Pipes & Valves | Galvanized steel pipes + stainless steel ball valves, easy to operate |
| Platform & Access | Top working platform with guardrails and ladder |
| Fire Hose Connection | Straight-through ball valve fire connection (optional) |
VI. Standard & Optional Equipment
| Item | Content |
|---|---|
| Standard Equipment | Tool kit, English labels, cleanable air filter, exhaust brake, water cannon & full sprinkler system, front & rear working platforms |
| Popular Optional Equipment | 1. Rear-mounted high-pressure water cannon; 2. ABS anti-lock braking; 3. 400L enlarged fuel tank; 4. Front fire spray (dual-purpose fire & sprinkler); 5. Side protection guards |
Professional Refurbishment Process
Every Shacman F3000 SX1255 Water Sprinkler Truck undergoes a systematic refurbishment and quality-control process, including:
- Complete vehicle dismantling and inspection
- Engine and transmission inspection
- Replacement of worn components
- Chassis and frame inspection
- Axle and suspension maintenance
- Steering and braking-system inspection
- Complete water-system reinstallation
- Pipeline, valve and water-pump testing
- Electrical and lighting-system inspection
- Cab interior refurbishment
- Exterior repair and repainting
- Complete vehicle commissioning
- Road testing before delivery
- Final factory quality inspection
This comprehensive process helps ensure stable working performance and reliable operation after export.
Heavy-Duty 6×4 Chassis
The truck uses a heavy-duty three-axle 6×4 chassis with dual rear drive axles. Power is transmitted to both rear axles, providing strong traction when carrying a full water tank or operating on muddy, uneven and unpaved roads.
Ten heavy-duty tires help distribute the vehicle load and provide stable support for construction, mining, municipal and industrial applications.

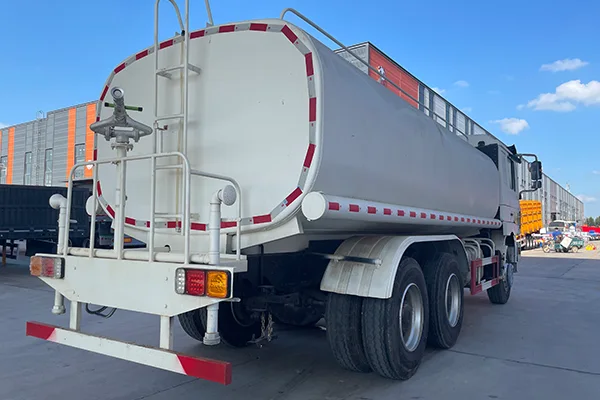

20m³ Reinforced Water Tank
The vehicle can be equipped with an approximately 20m³ reinforced water tank. Internal anti-wave baffles reduce water movement during acceleration, braking and cornering, helping improve driving stability.
The tank and water system can support:
- Front road flushing
- Rear sprinkling
- Side spraying
- Green-belt irrigation
- High-pressure water-cannon operation
- Self-priming water loading
- Gravity water discharge
- Optional mist-cannon dust suppression
Tank capacity, plate thickness and spraying configuration can be customized according to project requirements.
Cab and Driving Configuration
The truck is equipped with a single-row, flat-roof F3000 cab designed for practical commercial operation. Standard equipment includes vehicle air conditioning and hydraulic power steering to improve driving comfort and control.
Available options include:
- LHD left-hand-drive configuration
- RHD right-hand-drive conversion
- Customized cab interior
- Customized instrument labels
- Additional working lights
- Customer branding and exterior markings
Customized Vehicle Colors
The vehicle body and water tank can be finished in different colors according to customer or project requirements. Available colors include:
- Yellow
- White
- Red
- Engineering blue
- Other customized colors
Company logos, safety markings, reflective strips and project-specific identification can also be added when required.
Applications
The Shacman Delong F3000 SX1255 6×4 Water Sprinkler Truck is suitable for:
- Municipal road washing
- Construction-site dust suppression
- Mining-road watering
- Quarry dust control
- Landscaping and irrigation
- Industrial-area cleaning
- Coal-yard dust suppression
- Emergency water delivery
- Agricultural water transportation
- Optional mist-cannon dust-control operations
Contact Lianning Group
Looking for a reliable Shacman Delong F3000 SX1255 6×4 Water Sprinkler Truck?
Contact Lianning Group for current stock, inspection details, customized configurations and a competitive export quotation. Please provide your required quantity, LHD or RHD preference, destination country and intended application. Our team will recommend a suitable vehicle configuration for your project.
